Wedge 20k – 24k

Starting at $15,750 (48ft.)

Minimum Length: 48ft. | Maximum Length: 53ft.

Specifications

Trailer Specs

  • 20k – 24k GVWR
    • Customer Choice
  • 235/80/R16 -10ply Tires
  • Two Tandem Dual10,000lb. Dexter Oil Bath Axles with Brakes
  • Tube Frame
  • 97″ Wide
  • 9ft. Aluminum Ramps
  • Dual Jacks
  • Heavy Mesh Floor
  • 1 Pre-fab Lockable Tool Box
  • LED Lighting
  • Breakaway Kit
  • Safety Chains
  • 2 Part Epoxy Primer & 2 Part Urethane Paint

Length Options

20k – 24k Wedge Pricing

  • Length 48ft. $15,750.00
  • Length 50ft. $16,250.00
  • Length 53ft. $16,750.00

Additional Details

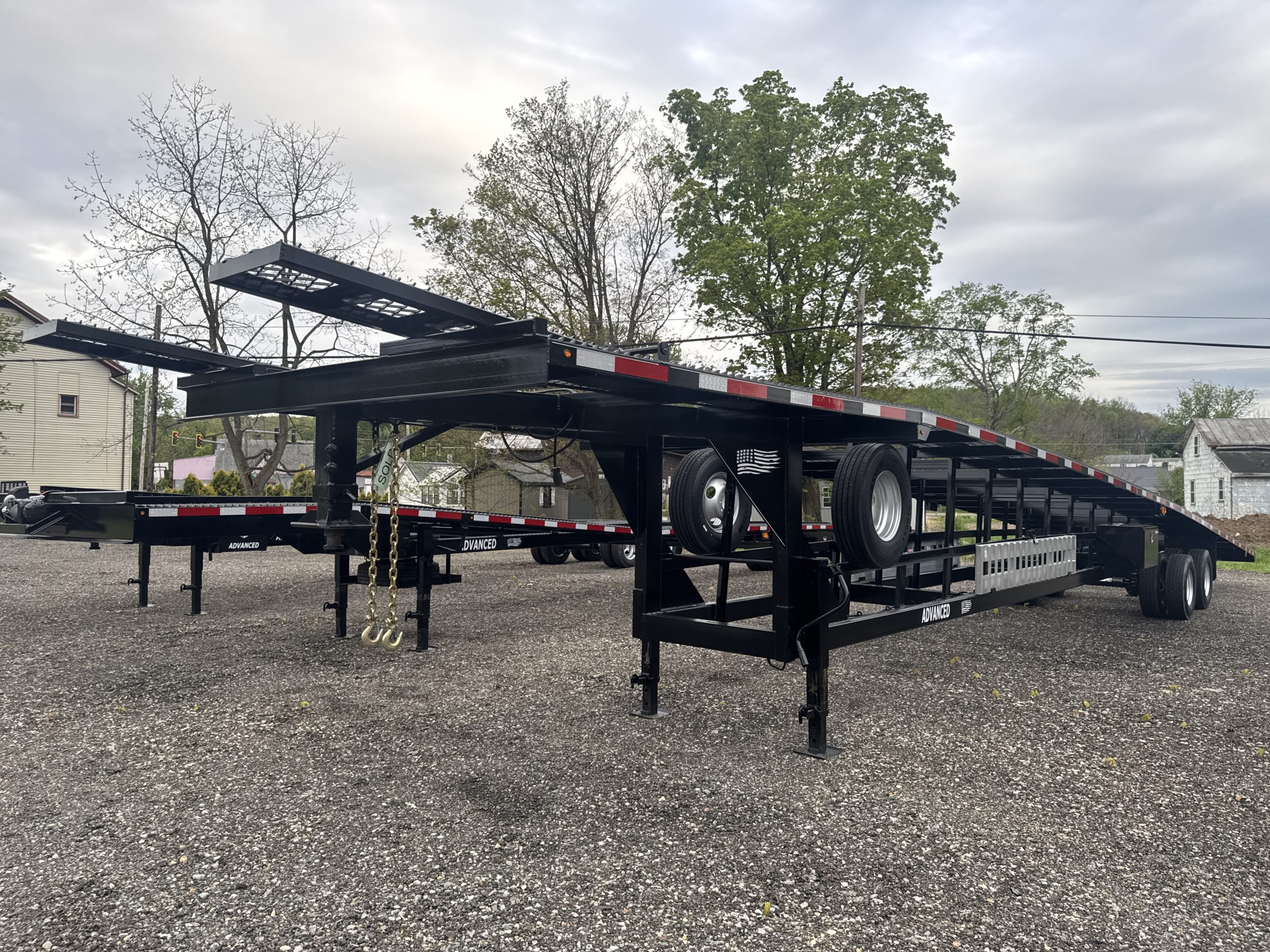

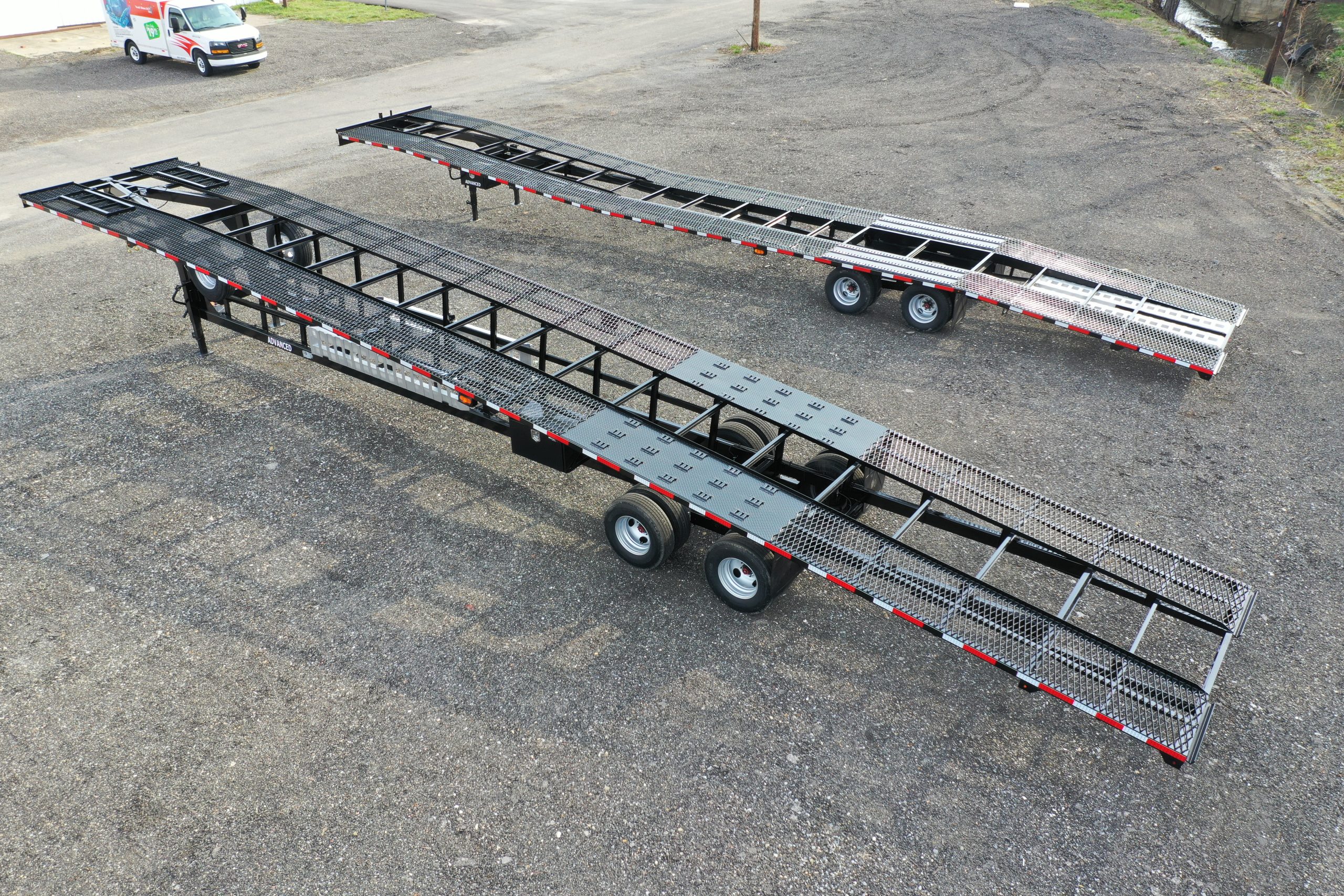

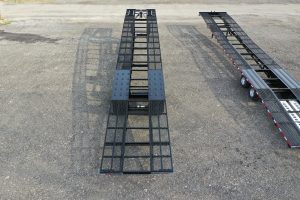

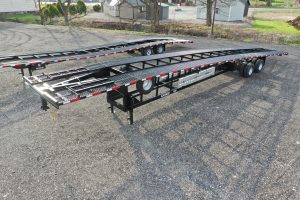

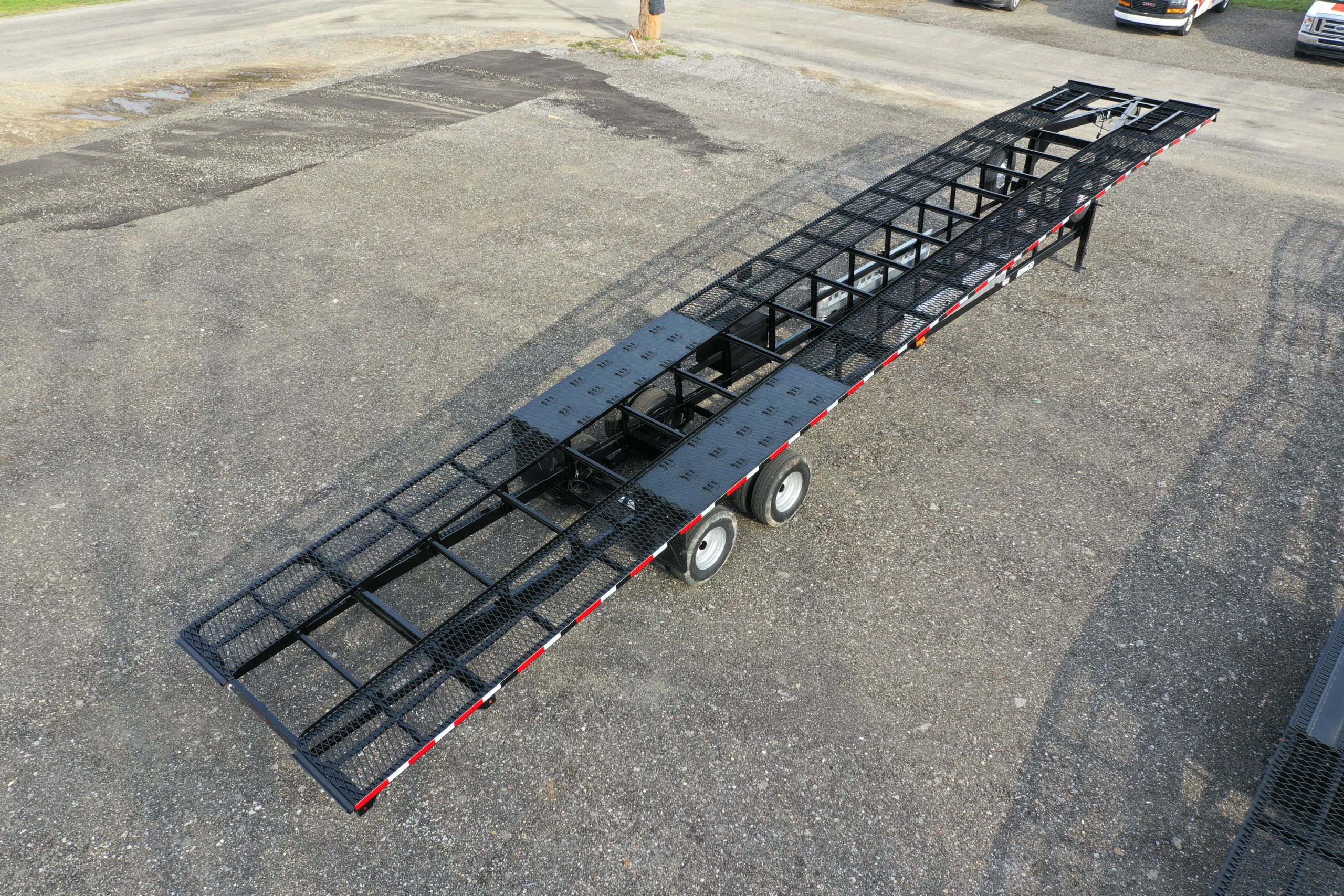

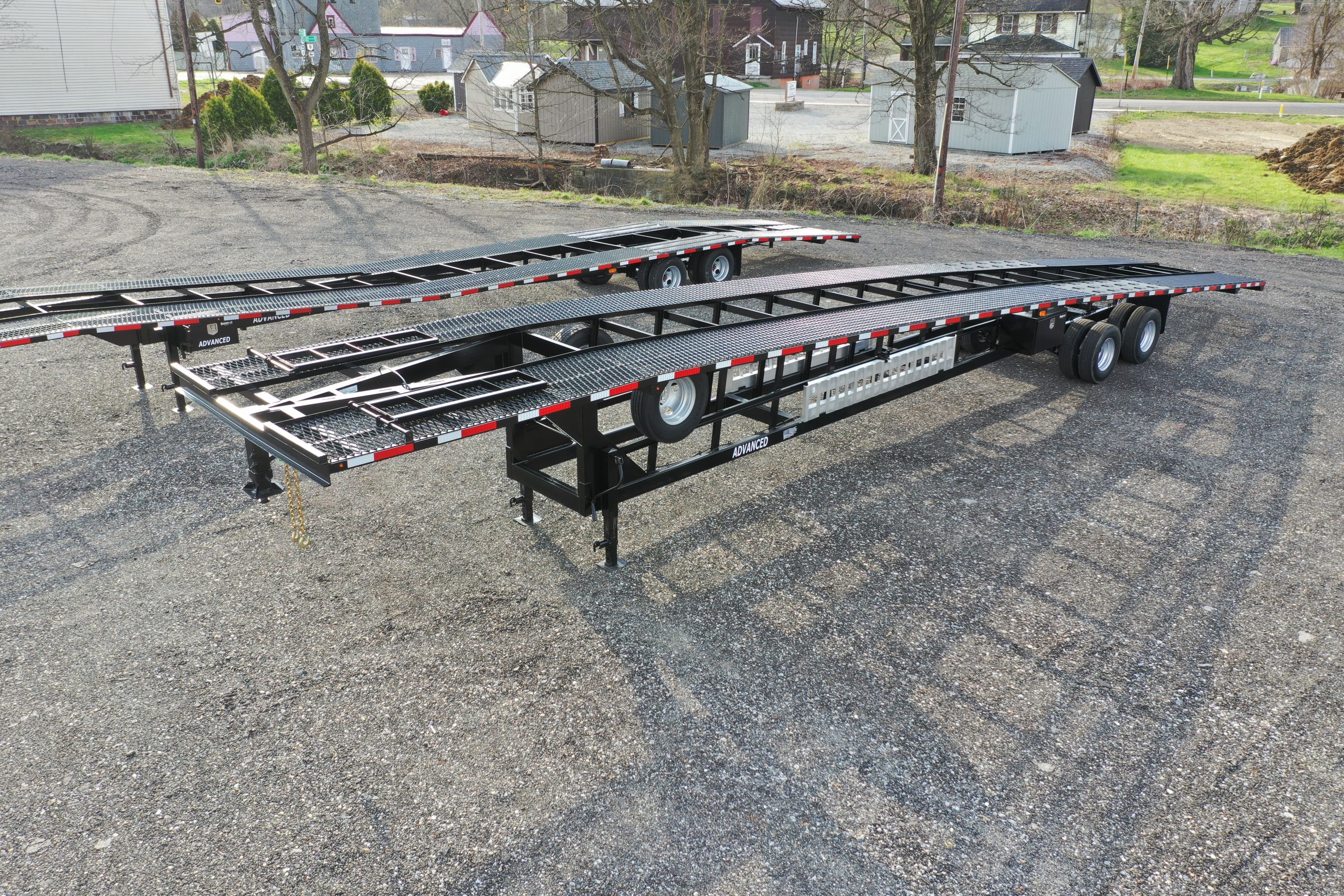

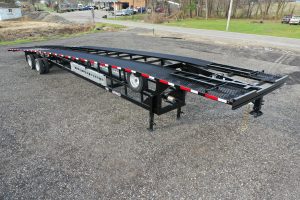

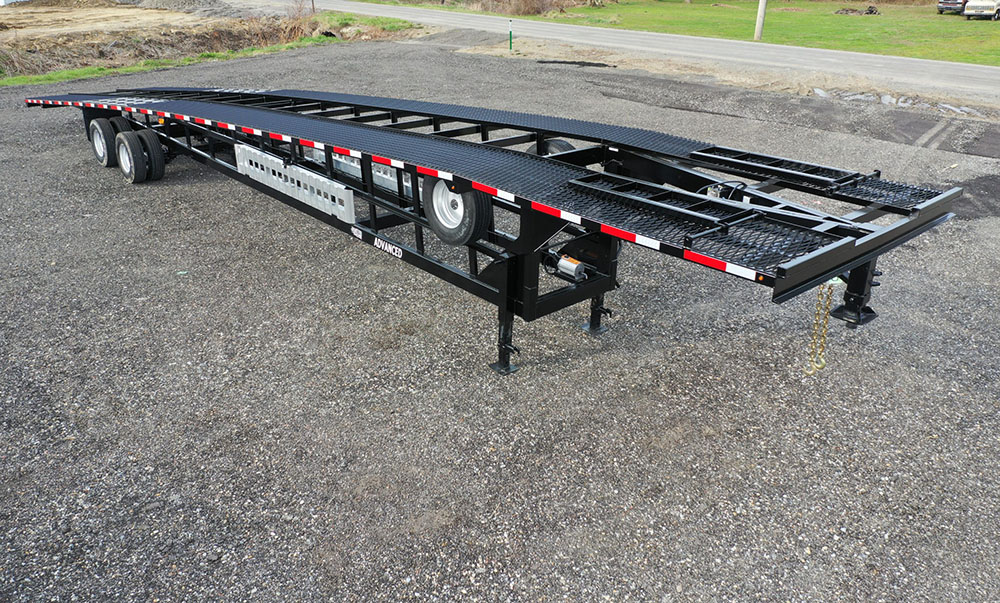

Built to handle demanding commercial use, this wedge car hauler is available with your choice of a 20,000 lb. or 24,000 lb. GVWR. It features a heavy-duty tube frame, 97-inch wide deck, and two tandem dual 10,000 lb. Dexter oil-bath axles with electric brakes for dependable performance and durability. Standard equipment includes 235/80R16 10-ply tires, 9-foot aluminum loading ramps, dual jacks, a heavy mesh floor, and a pre-fabricated lockable toolbox for secure storage. Every trailer also comes equipped with LED lighting, a breakaway kit, and safety chains. To maximize long-term corrosion resistance, the trailer is finished with a professional two-part epoxy primer followed by a two-part urethane paint system, providing exceptional durability and protection in harsh working conditions.

Additional Options

20k – 24k Optional Upgrades

  • $600 Premium Tires (235/80/R16 14ply)
  • $225 Spare Tire
  • $400 Pre-Fab Lockable Tool Box
  • $35 Wheel Straps
  • $500 Front Flip Out
  • $500 Rear Flip Out
  • $275 Premium Spare Tire
  • $50 Spare Tire Mount
  • $1,250 9k Winch with Battery
  • $100 Winch Plate
  • $2,200 Electric Hydraulic Jacks
  • $4,100 Trailer Hauling Package
    • 102 wide, center ball track, stinger, 4 ball tower, & 9k winch with Battery installed
  • $350 2 Speed Dual Jacks
  • $2,200 Electric Over Hydraulic Brakes
  • $200 King Pin
